This practical guide to compression adapters breaks down how they connect tubing and small-diameter pipes for dependable plumbing. It is written for DIY homeowners, licensed plumbers, and buyers searching for suitable parts at Installation Parts Supply.
3 8 To 1 2 Compression Adapter
Compression adapters function by compressing a ferrule against the pipe and fitting body, creating a watertight seal. They are commonly used in residential, business, and facility plumbing systems.
This guide reviews various types, sizes, materials, and fitting techniques. It also looks at leak troubleshooting and installation scenarios. Special attention is given to 1/2-to-3/8 conversions and to correctly matching thread types like NPT and compression. For long service life, the guide features copper choices.
Always follow the manufacturer’s tightening and turn specifications. Use tubing inserts for soft tubing like PEX when recommended. Avoid mixing ferrules or fitting bodies from different brands to avoid leaks and galling.
Key Takeaways
- Compression adapters form seals by compressing a ferrule onto the tubing.
- Common sizes and materials for many plumbing tasks are available through Installation Parts Supply.
- Select materials—brass, copper, or stainless—based on pressure and environment.
- Match thread types and sizes precisely when converting between 3/8 and 1/2 in. fittings.
- Follow turn-count guidance and use inserts when working with flexible tubing.
Understanding Compression Adapter And Compression Fitting Basics
A compression adapter joins tubing by physically pressing a ferrule around the tube’s outside diameter. Unlike threaded fittings or push-fit fittings, these parts seal through ferrule compression rather than thread engagement or grab rings. A compression adapter uses metal deformation, not thread engagement or internal grab rings.
The sections below describe each component and how the pieces fit together.
What A Compression Adapter Is And How It Differs From Other Fittings
A compression adapter is a compression-style fitting that connects tubing or pipe without soldering. As the compression nut is secured, it drives the ferrule into the tapered fitting body. This method differs from threaded joints that depend on mating threads and sealant. It is also different from push-fit fittings, which typically use rubber-like seals and retention clips for fast installation.
Basic Components: Nut, Ferrule Olive, And Fitting Body
The main pieces are the nut, the olive, and the fitting body. The nut applies axial force. The ferrule, also called an olive, slightly deforms into the tubing surface. Inside the fitting body, a tapered bore guides the ferrule into its sealing position.
Some designs include a rear ferrule to reduce stress on the seal and allow easier disassembly.
How Compression Adapters Form A Leak-Tight Seal
When the compression nut is secured, it pushes the ferrule into the taper of the fitting body. Radial compression causes the ferrule to press against the tubing, creating a line-contact seal. When the ferrule is fully aligned, the joint helps stop leaks under normal pressure and temperature conditions.
Compression fittings are often used on copper, brass, stainless steel, and many rigid plastic tubes. Installers should follow manufacturer torque or turn guidance and confirm tubing compatibility before assembly.
| Part | Purpose | Main Benefit |
|---|---|---|
| Compression nut | Applies force to push the ferrule | More controlled assembly and service |
| Ferrule olive | Deforms to grip tubing | Pressure-resistant seal at the tube |
| Fitting body | Tapered bore that seats ferrule | Consistent alignment and a stable sealing surface |
| Second ferrule where used | Decouples nut torque from ferrule seal | Better reassembly and reduced tube damage |
Common Compression Adapter Sizes And Type Conversions
Switching between 1/2-inch and 3/8-inch tubing is a frequent task. Choosing the correct reducer or adapter is important. The right part aligns with tubing OD, thread style, and fitting gender. Correct selection reduces the chance of leaks, extra adapters, and avoidable rework.
1/2 to 3/8 adapter options
For supply-line jobs, parts such as the 1 2 To 3 8 Reducer and Half Inch To Three Eighths Adaptor are often required. They convert a 1/2-inch feed to a 3/8-inch inlet. These parts are available as single-piece reducers and two-piece compression adapters. The design maintains a continuous tube seal. Before buying, check carefully whether the listed size refers to tubing OD or nominal pipe size.
Male and female adapter and reducer combinations
The gender of the fittings is important for proper mating. When the mating component has a male thread, a 1/2 Female To 3/8 Male Adapter may be the correct choice. For the reverse arrangement, installers often use a 3/8 Female To 1/2 Male Adapter. Mixed systems may also require options such as 1/2 Male To 3/8 Female Adapter or 1/2 Male To 3/8 Male Adapter.
Compression seal and NPT conversion options
Parts like 1/2 Compression To 3/8 Compression adapters maintain compression sealing on both ends. For threaded pipe networks, use a 1/2 Compression To 3/8 NPT or similar conversion fitting. When connecting to NPT, apply the correct thread sealant or PTFE tape to ensure a pressure-tight joint.
- Check part descriptions like 1 2 X 3 8 Compression Adapter or 3/8 X 1/2 Adapter for OD vs. nominal sizing.
- Before cutting tubing or ordering replacements, verify thread pitch, gender, and size.
- Buy from reputable suppliers such as Mueller, Parker, or Watts to reduce mismatch risk.
Material Compatibility For Reliable Compression Connections
The choice of materials significantly impacts the longevity of a joint. It is important to match the fitting material with the tubing, pressure, and fluid type. That matching process supports a connection that resists leaks, corrosion, and galling. For corrosive, high-purity, or demanding systems, a 3 8 Male To 1 2 Female Stainless Steel fitting is often a preferred choice.
For many applications, the main material choices are brass, copper, and stainless steel. Brass adapters generally perform reliably in potable-water and general plumbing systems. Copper fittings are often chosen with copper tubing and soldered pipe runs. Stainless steel provides valuable corrosion resistance and durability for high-pressure, chemical, or aggressive environments.
Compression joints seal best with hard tubing like copper, stainless steel, nylon, and PEEK. Flexible tubing like PEX may also be used when a correctly sized tubing insert is installed. The insert supports the tube wall so the ferrule can seal correctly without collapsing the tubing.
PTFE tubing is resistant to many chemicals and flexible but prone to PTFE cold flow under clamped loads. To reduce that risk, choose fittings with redundant seals, internal O-rings, or back-up support features. When PTFE is used in compression joints, inspect the connection periodically for deformation or seepage.
Ferrule selection is central to a reliable compression seal. Metal ferrules in brass or stainless steel maintain stability across a wide temperature range. One-piece ferrules may be suitable for softer tubing applications. Two-piece ferrule systems allow more control and can reduce galling by separating the front-ferrule and rear-ferrule functions.
Cone-profile asymmetrical ferrules can create consistent seals in precision assemblies. They are designed to lock their orientation. Symmetrical ferrules are simple to assemble, although they may wander on some hard plastic tubing. Choose the ferrule geometry based on tubing stiffness and service demands.
Material selection should account for working pressure, temperature, and the media flowing through the system. For high-pressure, high-purity, or aggressive fluid service, choose stainless components with compatible ferrules. For routine domestic plumbing, a brass compression adapter or copper compression fitting provides a good mix between cost and performance.
Best Practices And Mistakes To Avoid During Installation
Effective installation starts out with clean, square tubing and the correct parts. Following best practices prevents leaks, callbacks, and unnecessary rework. A simple pre-assembly checklist can reduce waste.
Preparing Pipe Ends: Cutting, Deburring, And Cleaning
Use a quality cutter to make clean, square tubing cuts. Uneven cuts cause leaks. Deburring tools strip off sharp edges and metal slivers.
Wipe the tube ends with a lint-free cloth so oil, dirt, and metal dust are not left behind. For soft tubing like PEX, install a rigid insert sized to the tubing ID. This allows the ferrule to seat properly. These steps—cutting, deburring, and cleaning—are important for a reliable seal.
Proper Tightening: Distance Turns Versus Torque And Avoiding Over-Tightening
Follow the manufacturer’s recommended turns after a finger-tight fit. Counting turns aligns compression with ferrule geometry better than torque readings. Thread pitch is directly tied to how much the ferrule compresses.
Avoid over-tightening to prevent ferrule flattening and broad surface contact, which can lead to leaks. With stainless fittings, use moderate torque to reduce galling. Use isopropyl alcohol as a temporary aid only if permitted by the maker.
Disassembly, Reassembly Limits, And When To Replace Ferrules
Compression fittings can tolerate limited disassembly. Ferrules often swage onto tubing after the first installation and may not reseal correctly if reused. Inspect the ferrule for deformation if you remove a fitting.
Replace ferrules showing signs of work-hardening, cracking, or poor seating. If a fitting has been assembled and disassembled several times, replace the ferrule and consider the fitting body to ensure a leak-tight joint.
Common mistakes include mixing components from different manufacturers, neglecting to use inserts on soft tubing, mismatching compression and NPT threads, and ignoring cutting, deburring, and cleaning. Addressing these issues cuts call-backs and enhances long-term performance.
Choosing The Correct Adapter With Better Search Terms
Finding the correct adapter starts on using precise search phrases and carefully reading part descriptions. Specific search phrases help find the right item and reduce returns. Common search terms include 3/8Th To 1/2 Adapter and 1 2 X 3 8 Compression Adapter for swift results.
Important description details include fitting gender, diameter, and thread type. Listings like 1/2 Female To 3/8 Male Adapter or 1 2 To 3 8 Compression Adapter indicate which end accepts tubing or pipe. Ensure the diameter refers to tubing OD or nominal pipe size.
Utilizing search variants is important when suppliers employ different naming conventions. Try 3/8 X 1/2 Adapter, 3 8 To 1 2 Compression Adapter, or 3/8Th To 1/2 Adapter to find compatible parts across various catalogs. Suppliers like Installation Parts Supply and Grainger often list the same item under multiple labels.

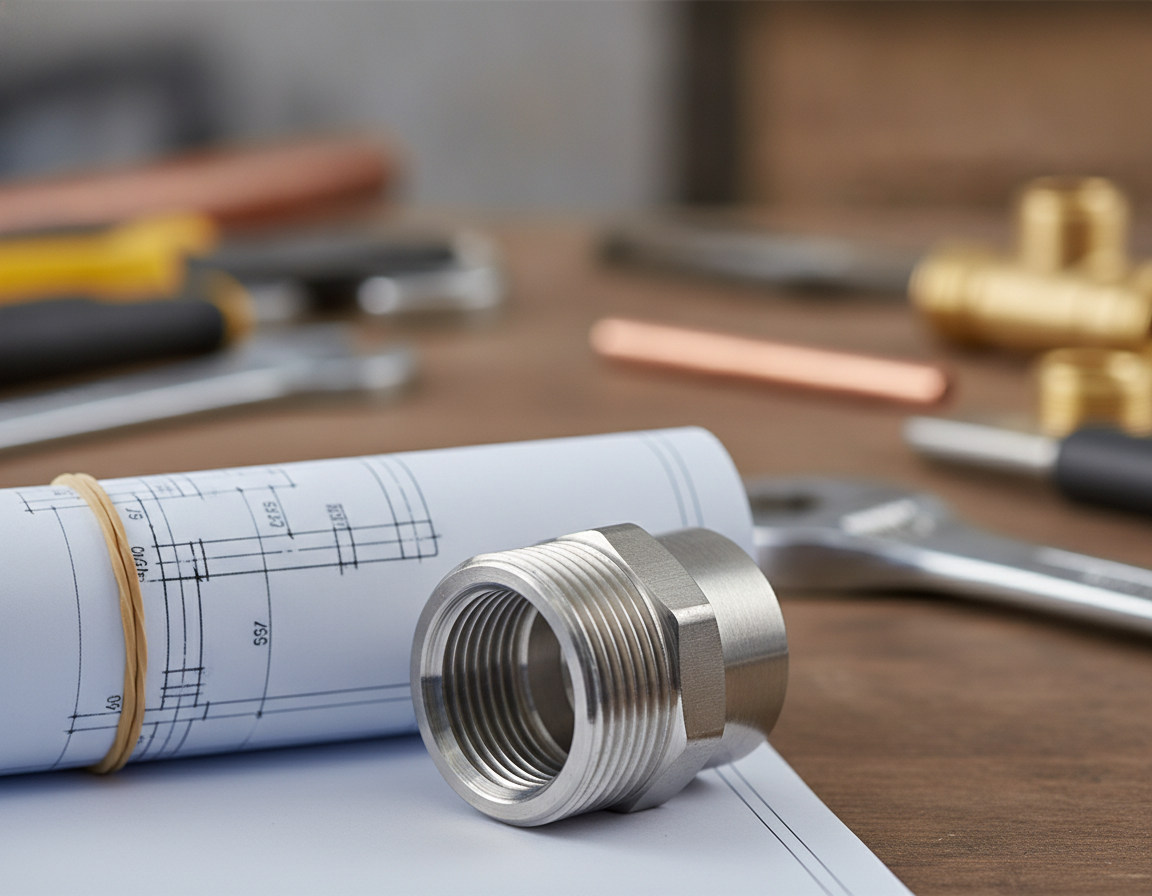

Adapter orientation should match with the mating parts. A male-to-female fitting such as 1 2 Male To 3 8 Female Adapter may be the right choice for connecting a rigid pipe run to a hose or supply line. Female-to-female adapters are used when two male-threaded parts need to be joined.
Be cautious of hybrid fittings that combine different thread types. A 1/2 Compression To 3/8 NPT or 1/2 Female Compression To 1/2 Male NPT fitting places a compression connection on one end and pipe thread on the other. Always use thread sealant as directed by the manufacturer.
Choosing the right material is essential for corrosion resistance, compatibility, and service life. Brass and stainless steel are widely used choices. Ensure compatibility with copper, PEX, or PTFE tubing to avoid galvanic corrosion when mixing metals.
When uncertain, verify part numbers and review product photos closely. Incorporating keywords like 3/8Th To 1/2 Adapter, 1 2 X 3 8 Compression Adapter, 1/2 Female To 3/8 Male Adapter, 1 2 To 3 8 Compression Adapter, 3 8 To 1 2 Compression Adapter, and 3/8 X 1/2 Adapter in searches can expedite the process of finding the correct match.
Finding And Fixing Compression Fitting Leaks
Leaks and pressure loss in compression connections require a quick, systematic approach. Start with a visual inspection, then use simple checks to narrow down the problem. Always prioritize safety when working with live systems.
Common Causes To Diagnose
Begin by inspecting the ferrule for gaps, uneven marks, or poor seating. Look for nuts that are damaged. Ensure the tubing is cut square and fully inserted. Verify the adapter type matches the system to avoid thread mismatches.
Diagnostic Checks To Follow
- Look closely to confirm the ferrule is seated and the nut is properly engaged.
- Rotate the nut slightly to feel for smooth engagement; roughness may indicate damaged threads.
- Measure tubing diameter and check for surface roughness or ovality that can prevent a seal.
- Pressure-test the connection at low pressure before returning to service.
Useful Repair Steps
If a joint appears loose, retighten to the recommended specification. Avoid over-tightening, which can deform the ferrule.
For swaged, scored, or distorted ferrules, replace them along with the nut and fitting body if necessary. Avoid mixing ferrules and fitting bodies from different manufacturers because mismatched taper, length, or geometry can weaken the seal.
For soft tubing, fit an internal tubing insert sized to the pipe to stabilize the wall and improve sealing. Where corrosion is a concern, stainless steel fittings can extend service life.
Addressing PTFE Creep And Cold-Flow
PTFE cold flow prevention requires specific strategies. Use fittings with internal O-rings, redundant seals, or mechanically backed ferrule designs that resist creep.
Plan periodic inspections because cold flow may develop over time, even after the fitting was installed correctly. If PTFE tubing shows deformation, replace it and consider using a secondary or backup sealing method.
| Problem | Quick Check | Suggested Fix |
|---|---|---|
| Moisture around nut | Loose nut; visible gap at ferrule | Tighten to specification; replace ferrule if leaking continues |
| Leak appears only under pressure | Oval tubing or poor ferrule seating | Square-cut tube, install tubing insert, replace ferrule |
| Long-term slow leak | Check for soft tube deformation or PTFE creep | Add secondary sealing or change to reinforced tubing |
| Damaged or crossed threads | Nut feels rough while tightening | Replace damaged nut or body and tighten new parts to specification |
| Corroded fitting components | Inspect for rust, pitting, or discoloration | Use corrosion-resistant fittings and matching ferrules |
Application Tips And Common Use Cases
Compression adapters are important for various tasks around the home. They commonly connect supply tubing to faucet, toilet, and fixture inlets. For example, a sink supply line adapter may be needed when faucet inlets and sink supply posts use different sizes.
Residential work commonly includes sink supply lines, faucet connections, toilet hookups, and appliance connections. When replacing a tank or adding a valve, a water heater compression adapter can be useful. Choose parts rated for household water pressure and make sure the ferrule material works with the tubing.
Commercial and industrial systems usually have stricter requirements. High-pressure compression fittings are used in process lines, bottled gas systems, and HVAC. For demanding applications, stainless ferrules and two-piece ferrule designs can better resist creep, corrosion, and vibration.
Instrumentation and high-purity systems need fittings that minimize contamination, out-gassing, and unwanted residue. Select materials compatible with sterilization conditions and clean-room environments. Ensure the pressure ratings and traceability are met when selecting components for lab or medical equipment.
Combining parts from different manufacturers can create sealing problems. Small differences in ferrule taper, thread pitch, or ferrule length can prevent the seal. It is best to purchase fittings and ferrules from the same vendor or confirm compatibility through Installation Parts Supply or the manufacturer’s data.
When buying parts, check product pages for exact OD, thread pitch, material, and pressure rating. That step helps prevent mistakes in the field. Correct part selection is central for preventing leaks and extending service life in residential and commercial systems.
Conclusion
Compression adapters are important for joining and converting tubing, provided you select the right one and install it properly. Knowing the main parts—nut, ferrule, and body—makes selection and installation safer. That understanding helps you match size, gender, and thread type, including parts such as a 3/8 to 1/2 converter or 1/2 female to 3/8 male adapter.
The material of the adapter is also essential. Brass and stainless steel are ideal for high-pressure and harsh chemical environments. Copper, on the other hand, is appropriate for many residential applications.
Follow proper installation methods. Ensure square cuts and deburr the tubing. Install inserts when working with soft PEX, nylon, or similar flexible tubing. Tighten by the recommended turns, avoiding excessive force.
When troubleshooting, check ferrule seating and thread condition. After disassembly, replace ferrules that are deformed. For PTFE applications, consider redundant seals, backup sealing methods, or alternative materials to control cold-flow.
When buying fittings, use reputable suppliers and detailed product specifications. Installation Parts Supply recommendations can help confirm compatibility. They provide a wide selection of adapters, reducers, and conversion fittings. Choosing the right parts and following proper installation techniques will reduce leaks and extend system lifespan.
