An intermittent bonded ribbon production line is used to manufacture flexible fiber groups for contemporary, high-count cable architectures. It keeps fibers properly aligned for expedited mass fusion splicing, yet accommodates the group’s flexibility within a compact cable core.
Unlike fully bonded ribbons, intermittent bonded ribbons feature localized bonds at predetermined intervals. This strategic placement keeps the fibers in an organized sequence while the ribbon can bend and roll into circular loose tubes and other confined spaces.
Network engineers employ this method when faced with constraints in duct space, splice closures, and equipment racks. A meticulously crafted ribbon cable facilitates dense network deployments in data centers, telecom backbones, metro networks, FTTx feeder systems, and 5G transport networks.
Fiber Draw Tower SZ Stranding Line Fiber Ribbone Line
Key Takeaways
- An intermittently bonded ribbon line enables flexible, high-density fiber arrangements.
- Discrete bond points keep optical fibers organized without making the ribbon stiff.
- Flexible ribbon structures allow manufacturers to place more fibers inside compact circular cables.
- Mass fusion splicing is faster when fiber order remains stable and clear.
- Ribbon cable technology serves data centers, telecom routes, and fiber access networks.
Intermittently Bonded Ribbon Production Line Overview
This ribbon production method enables the creation of fiber designs that combine high density with practical handling. This method involves placing bonds at predetermined intervals, allowing for the movement of fiber subunits between these points.
This technique facilitates the incorporation of a higher number of fibers within constrained duct spaces. It also helps maintain the organized ribbon structure, essential for efficient splicing and cable assembly processes.
What Is An Intermittently Bonded Optical Fiber Ribbon?
An intermittent bonded fiber ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds remain unencumbered, enabling the ribbon to adopt various configurations without rigidification.
This ribbon format is commonly described as a rollable, flexible, or spider web ribbon. It contrasts with the conventional flat ribbon cable, which maintains a fixed profile along its entire length.
During splicing, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers can be packed into compact bundles, optimizing space utilization within the cable.
Why Flexible Ribbon Technology Matters For High-Density Fiber Networks
Fiber network planners must address the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure enables ribbon groups to be packed into smaller cable cores, preserving fiber order.
The fiber density ratio is a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding enhances this ratio, allowing ribbon groups to occupy available spaces within the cable.
For installers, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.

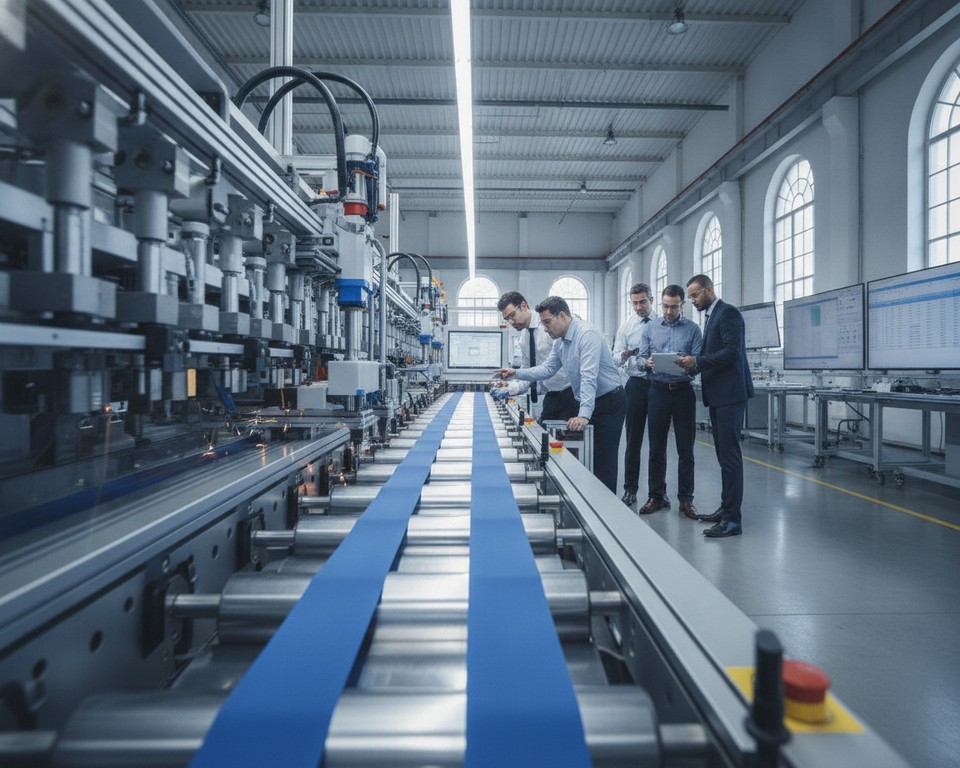

Intermittent Bonded Ribbon Production Line
| Ribbon Design Feature | Intermittently Bonded Ribbon Design | Continuously Bonded Ribbon |
|---|---|---|
| Bond arrangement | Separated bonds at controlled intervals | Bonding maintained continuously along the ribbon |
| Fiber configuration between bond points | Can curl or roll to fit compact cable spaces | Stays mainly flat and planar |
| Splice preparation position | Can be flattened for mass fusion splicing | Remains permanently in a flat ribbon configuration |
| Cable packing role | Allows compact and flexible subunit positioning | Typically uses a fixed ribbon stack configuration |
| Common cable application | Flexible ribbon and high-density fiber cable designs | Traditional flat ribbon cable designs |
Intermittent Bonded Ribbon Construction And Material Requirements
A flexible bonded ribbon integrates precise fiber placement with adaptable bonding points. Its architecture supports compact cable arrangements while allowing effortless separation during handling, routing, and splicing.
Choosing appropriate materials significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must keep its fibers properly positioned without imparting undue stiffness to the ribbon.
Optical Fiber Counts And Subunit Arrangement
Intermittent bonded ribbons can accommodate 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.
A 12-fiber configuration often employs six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.
Small gaps placed between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.
| Construction Element | Common Arrangement | Manufacturing Purpose |
|---|---|---|
| Number of fibers | 4, 8, 12, 24, or up to 36 fibers | Aligns fiber count with cable density and splice capacity |
| Fiber subunit layout | Two neighboring fibers in each optical fiber subunit | Maintains predictable separation between subunits |
| Fiber spacing in a subunit | Fibers touching or separated by up to 1.5 diameters | Keeps the subunit profile compact and stable |
| Subunit separation gap | Approximately 5 to 100 micrometers | Allows greater movement and flexibility near bond points |
UV-Curable Resin And Wet-On-Wet Bonding
Subunit coatings and bonding materials frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.
Wet-on-wet bonding produces a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.
UV-curable resin materials can blend at the interface before curing. This facilitates molecular entanglement between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.
Main Equipment For Intermittent Bonded Ribbon Production
A fiber ribbon production line combines advanced motion control with meticulous material handling. Each station ensures fibers remain aligned, clean, and stable from the initial payoff to the final winding.
The line equipment manages adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to manufacture customized flexible ribbon, preserving the integrity of the fiber order.
Fiber Payoff And Tension Control Equipment
Payoff units deliver individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.
In a fiber ribbon line, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.
Coating Die With Discrete Bond Applicator
The coating system applies a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.
A discrete bond applicator then places a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.
| Production Equipment | Main Function | Production Benefit |
|---|---|---|
| Payoff and tension unit | Supplies fibers under controlled tension | Reduces twist and uneven fiber loading |
| Subunit coating die | Creates coated optical fiber subunits | Supports stable subunit width and geometry |
| Intermittent bond applicator | Applies resin at controlled intervals | Creates flexible links between adjacent subunits |
| UV cure and take-up system | Cures, cools, inspects, and winds the ribbon | Helps protect bond quality and organized fiber placement |
UV Curing, Cooling, And Ribbon Take-Up Equipment
UV energy cures the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.
The cooling stage lowers ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.
The take-up system winds the finished ribbon with low, even tension. Proper winding protects the cured ribbon structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.
Fiber Preparation, Alignment, And Color Sequence Control
A stable ribbon cable begins with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.
Managing Fiber Identification During Splicing And Maintenance
A well-defined fiber color sequence is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.
When fiber counts increase, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.
| Ribbon Fiber Position | Fiber Identification Color | Process Purpose |
|---|---|---|
| 1 | Blue | Starts the standard fiber color sequence |
| 02 | Orange | Provides rapid visual identification |
| 3 | Standard green | Supports the required planar sequence |
| 4 | Standard brown | Helps verify subunit placement |
| 5 | Standard slate | Supports identification around the middle of the sequence |
| 6 | Standard white | Supports clear visibility during inspection |
| 07 | Red | Supports accurate splicing records |
| 8 | Standard black | Maintains sequence recognition in trays |
| 9 | Standard yellow | Assists field restoration activities |
| Position 10 | Violet | Helps distinguish later positions in the standard sequence |
| Position 11 | Standard rose | Supports high-count ribbon identification |
| 12 | Aqua | Marks the final position in the standard color order |
Preventing Fiber Twist And Uneven Tension
Fiber guides and payoff units are important in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.
Production personnel carefully check tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.
UV Curing And Intermittent Bond Application Process
Intermittent bonding connects fiber subunits without solidifying the ribbon into a rigid form. This method supports compact routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.
Applying Intermittent Bonds At Predetermined Intervals
Equipment applies bonds at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.
The bond applicator delivers a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends mitigate abrupt stress changes when the cable bends or twists.
Creating Flexible And Strong Bond Interfaces
Wet-on-wet processing requires applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.
The resulting gradient influences various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features improve resistance to bond peeling while facilitating separation when required.
Controlling Curing Performance
UV lamps must provide consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.
Production operators monitor bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.
Flexible Flat Cable And Fiber Ribbon Quality Control
Verifying every flat ribbon cable is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.
Frequent quality checks are important in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.
Checking Bond Spacing, Ribbon Width, And Thickness
The distance between bonding points is a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.
Inspection procedures are used to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.
| Inspection Area | Items Checked | Production Value |
|---|---|---|
| Fiber identification | Count, identification color, and fiber position | Supports reliable splice records and maintenance activities |
| Intermittent bond arrangement | Bond position, interval, and connection between subunits | Supports organized fibers without sacrificing flexibility |
| Ribbon profile | Width, thickness, and flatness | Supports compatibility with handling and splice equipment |
| Surface condition | UV cure state, coating coverage, and defects | Reduces handling damage during winding |
Optical And Mechanical Performance Testing
Mechanical testing focuses on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.
Optical testing encompasses evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.
Attenuation measurements and splice-handling tests are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.
Production Automation, Efficiency, And Precision Winding
The essence of efficient ribbon production on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.
Production Line Synchronization And Process Data Monitoring
Automated control systems synchronize payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.
Production records track fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.
- Controlled payoff tension reduces fiber stretching and slack.
- Controlled bond timing maintains regular intervals between bond points.
- Dimensional checks detect width or thickness deviations promptly.
- Take-up data helps with production lot tracking and later processing.
Ribbon Winding For Downstream Cable Production
A cable precision winder ensures the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.
Finished ribbon units can be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.
When producing custom ribbon cable, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.
| Process Area | Control Focus | Downstream Benefit |
|---|---|---|
| Optical fiber payoff | Consistent tension with correct fiber color order | Orderly ribbon placement during cable assembly |
| Intermittent bond application | Consistent spacing and resin volume | Flexible ribbon behavior during handling |
| UV curing | Stable UV lamp output and cure exposure | Reliable bond strength before winding |
| Precision ribbon winder | Uniform traverse with controlled spool tension and layering | Reliable payout during central tube or loose tube processing |
Applications, Splicing, And Connector Planning For Ribbon Cable
Ribbon fiber is widely used in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.
A properly planned ribbon cable system enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.
Advantages Of Mass Fusion Splicing
A ribbon fusion splicer allows the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.
Mass fusion processing lowers handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.
Loose tube cable, on the other hand necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.
Dense Link Connection Planning
High-density fiber links often employ MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.
Connection planning also includes transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.
| Planning Item | What It Determines | Typical Network Use |
|---|---|---|
| Number of ribbon fibers | Required splice capacity and cassette configuration | 12-fiber and 24-fiber network backbones |
| MPO or MTP cable connector | Polarity, gender, and port compatibility | Data center trunk links and 5G equipment areas |
| Multi-fiber harness or fanout assembly | Breakout from multi-fiber to single-fiber ports | Switch connections and patching fields |
| Optical link loss budget | Allowed loss from splices, connectors, and fiber length | High-speed data transmission cable routes |
Shanghai Weiye OFC Equipment For Fiber Ribbon Production Lines
Shanghai Weiye OFC Equipment, commonly referred to as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to support consistent manufacturing, facilitate clear operator control, and enable seamless integration into production lines.
For initiatives requiring an intermittent bonded ribbon production line, SHWY supports every stage of ribbon handling, curing, and winding with suitable machinery.
SHWY Optical Fiber And Cable Machinery Experience
Operating since 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.
In 2020, SHWY transitioned to independence, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.
Relevant Production Equipment From SHWY
The SHWY portfolio encompasses a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.
For ribbon projects, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.
Additional SHWY equipment includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.
Summary
A complete intermittent bonded ribbon line brings together fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step ensures the preservation of fiber order while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.
The resultant ribbon cable supports efficient mass fusion splicing and organized fiber management. It is particularly useful for networks with high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.
Effective project planning extends beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
